Liv Devote Advanced 2

Liv Devote Advanced 2
Please select options Unavailable

Details

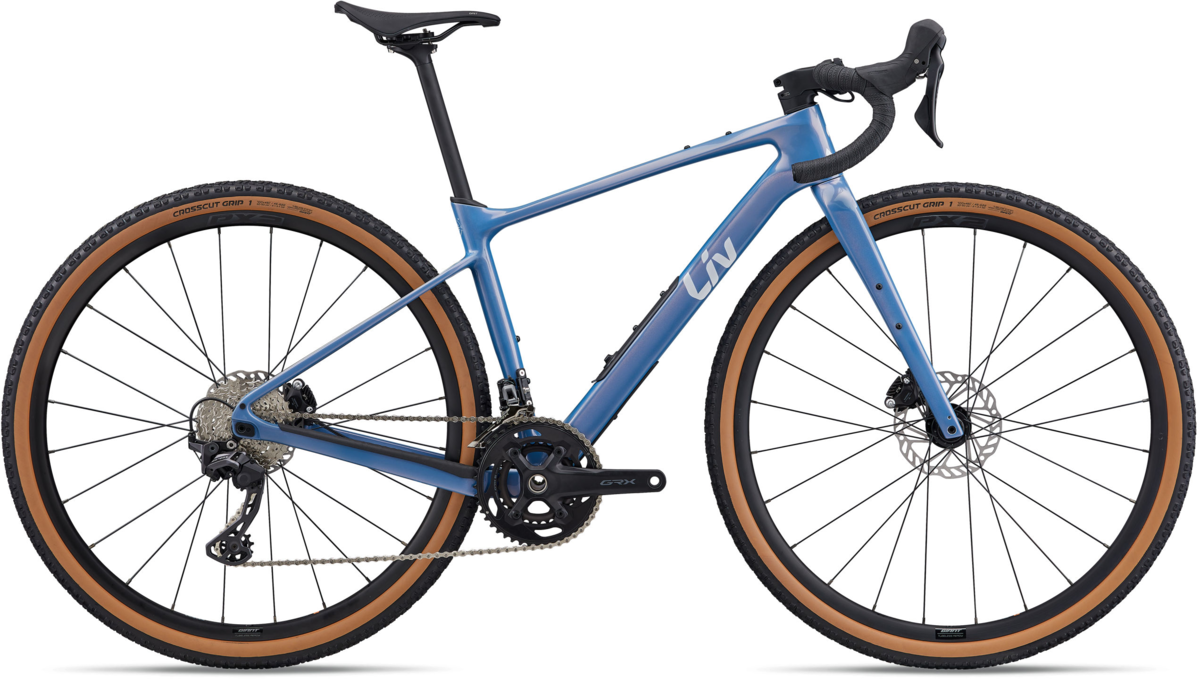

The Devote Advanced is your go-to for going fast, wherever the gravel muse may call you. Balancing speed and ruggedness, this versatile bike is ready for race day, rest day, and multi-day adventures.

Ultralight Agility
- An ultralight Advanced-grade composite frame and fork make for snappy acceleration, while internal cable routing streamlines your cockpit and makes room for your must-have accessories. And the redesigned geometry puts you in a more aggressive position, increases traction and stability, and allows more control at speed and on descents.

Superior Compliance and Control
- The Contact XR D-Fuse handlebar features a 5-degree back sweep and flare drop for a comfortable and ergonomic grip. Select models also feature the Contact D-Fuse seatpost, and one is equipped with a dropper post. Or swap out for your preferred set-up. These proprietary D-Fuse components absorb bumps and reduce vibrations, ensuring less fatigue and more fun on those epic rides.

Unmatched Versatility
- Adapt to the route with the flip chip – dropout, which lets you adjust your wheelbase length and rear-wheel tire clearance. Go shorter for responsive handling and quick acceleration. Go longer for added stability plus clearance for larger tires and extra traction. Plus, the integrated down tube storage lets you stash a multi-tool or extra fuel, so nothing’s slowing you down.

bike diagram with measurements referenced in table that follows

Sizes:
SizeX-SmallSmallMediumLarge
Geo Setting SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG
A Seat Tube Length (mm) 390 420 465 500
B Seat Tube Angle 74.5° | 74.4° 74.5° | 74.4° 74.5° | 74.4° 74.5° | 74.4°
C Top Tube Length (mm) 525 | 525 535 | 535 545 | 545 555 | 555
D Head Tube Length (mm) 90 110 140 160
E Head Tube Angle 70.0° | 69.9° 70.5° | 70.4° 71.0° | 70.9° 71.0° | 70.9°
F Fork Rake (mm) 50 50 50 50
G Trail (mm) 78.4 | 82 75 | 78.5 71.6 | 75.1 71.6 | 75
H Wheelbase (mm) 1012 | 1022 1019 | 1029 1026 | 1036 1043 | 1052
I Chain Stay Length (mm) 425 | 435 425 | 435 425 | 435 430 | 440
J Bottom Bracket Drop (mm) 80 | 81 80 | 81 80 | 81 80 | 81
K Stack (mm) 523 | 524 544 | 545 574 | 575 593 | 594
L Reach (mm) 380 | 379 384 | 383 386 | 385 391 | 389
M Stand Over Height (mm) 681 | 688 708 | 715 748 | 755 779 | 786
N Handlebar Width (mm) 400 400 420 420
O Stem Length (mm) 50 60 70 80
P Crank Length (mm) 165 170 172.5 172.5
Sizes:
SizeX-SmallSmallMediumLarge
Rider Height (cm) 150–163 cm 158–169 cm 164–175 cm 170–181 cm

Specs

Frame Advanced-grade composite, 12x142mm thru-axle, flat mount disc, flip chip – dropout, integrated down tube storage
Fork Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, flat mount disc, FSA stainless upper/lower bearings
Rims Giant P-X2 Disc, alloy
Hubs Giant alloy, 12mm thru-axle
Spokes Sapim
Tires Giant Crosscut Grip, 700x45c, tubeless
Bottom Bracket Shimano, press fit
Crankset Shimano FC-RX610, 30/46, XS: 165mm, S: 170mm, M: 172.5mm, L: 172.5mm

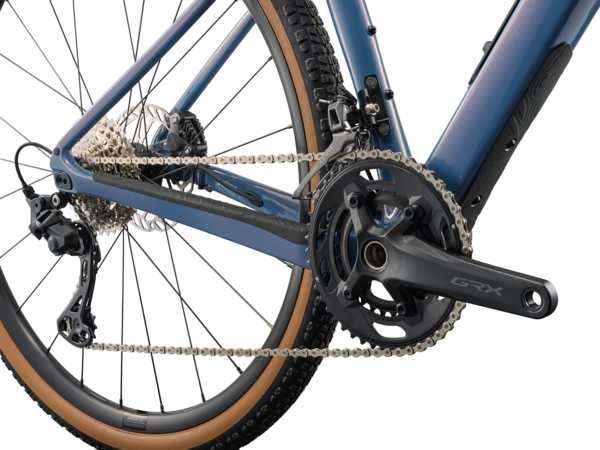

Shifters Shimano GRX RX-610, 2x12
Front Derailleur Shimano GRX RX-820
Rear Derailleur Shimano GRX RX-820
Cassette/Freewheel Shimano CS-HG710, 12-speed, 11x36
Chain KMC X12L-1
Brakes Shimano GRX BR-RX410 hydraulic, Giant MPH rotors, [F]160mm, [R]160mm
Brake Levers Shimano GRX RX-610 hydraulic
Handlebars Giant Contact XR D-Fuse, 31.8mm, 5-degree back sweep, flare drop, XS: 400mm, S: 400mm, M: 420mm, L: 420mm
Tape/Grips Liv All Condition
Stem Giant Contact AeroLight, -10-degree, XS: 50mm, S: 60mm, M: 70mm, L: 80mm
Seatpost Giant D-Fuse, composite, 14mm offset
Saddle Liv Grit
Pedals Sold Separately

* Subject to change without notice.
