Details

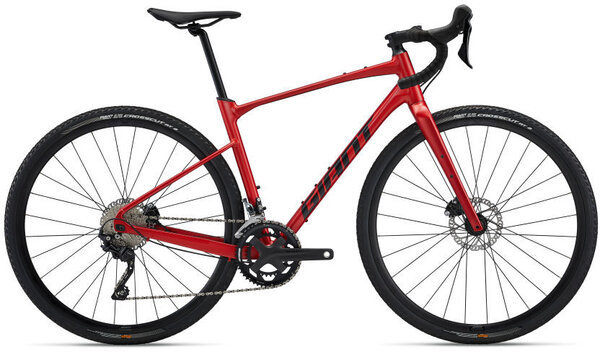

The all-new Revolt features a lightweight ALUXX aluminum frame with updated gravel geometry including a longer reach and lower bottom bracket for added stability. A flip chip on the rear dropout adjusts wheelbase and tire clearance, and you can choose the included D-Fuse seatpost for maximum compliance or switch to a 30.9mm round or dropper post. The frame is integrated for disc brakes and it has clearance for larger tires up to 53mm.
SIZE | X-Small | Small | Medium | Med/Lrg | Large | X-Large |
---|---|---|---|---|---|---|
FLIP CHIP POSITION | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG |
A SEAT TUBE LENGTH (mm) | 430 | 450 | 470 | 490 | 510 | 530 |
B SEAT TUBE ANGLE | 74.0° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
C TOP TUBE LENGTH (mm) | 540 | 550 | 560 | 575 | 585 | 600 |
D HEAD TUBE LENGTH (mm) | 125 | 135 | 150 | 165 | 180 | 195 |
E HEAD TUBE ANGLE | 70.0° | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
F FORK RAKE (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
G TRAIL (mm) | 78 | 82 | 72 | 75 | 68 | 72 | 65 | 68 | 65 | 68 | 65 | 68 |
H WHEELBASE (mm) | 1029 | 1039 | 1025 | 1035 | 1030 | 1040 | 1035 | 1045 | 1045 | 1055 | 1061 | 1071 |
I CHAIN STAY LENGTH (mm) | 430 | 440 | 430 | 440 | 430 | 440 | 430 | 440 | 430 | 440 | 430 | 440 |
J BOTTOM BRACKET DROP (mm) | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 |
K STACK (mm) | 556 | 570 | 586 | 602 | 616 | 630 |
L REACH (mm) | 381 | 381 | 387 | 391 | 397 | 407 |
M STAND OVER HEIGHT | 717 | 724 | 734 | 741 | 752 | 759 | 769 | 776 | 786 | 793 | 801 | 810 |
N HANDLEBAR WIDTH (mm) | 420 | 420 | 440 | 440 | 460 | 460 |
O STEM LENGTH (mm) | 70 | 80 | 90 | 100 | 100 | 110 |
P CRANK LENGTH (mm) | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
Q WHEEL SIZE | 700x 42C | 50C | 700x 42C | 50C | 700x 42C | 50C | 700x 42C | 50C | 700x 42C | 50C | 700x 42C | 50C |
Size | Rider Height |
---|---|
X-Small | 155 cm to 166 cm |
Small | 159 cm to 171 cm |
Medium | 169 cm to 181 cm |
Medium/Large | 174 cm to 186 cm |
Large | 179 cm to 191 cm |
X-Large | 189 cm to 200 cm |
Due to supply-chain issues, Specs are subject to change without notice.
Specs
Frame | ALUXX-Grade Aluminum, 12x142mm thru-axle, disc, flip chip dropout |
---|---|
Fork | Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
Rims | Giant S-X2 Disc wheelset |
Hubs | Giant S-X2 Disc wheelset |
Spokes | Giant S-X2 Disc wheelset |
Tires | Giant CrossCut AT 2, 700x38c, tubeless |
Bottom Bracket | FSA Mega EXA, press fit |
Crankset | FSA Omega Adventure, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
Shifters | Shimano GRX RX-400, 2x10 |
Front Derailleur | Shimano Tiagra |
Rear Derailleur | Shimano GRX RX-400 |
Cassette/Freewheel | Shimano HG500, 11x34 |
Chain | KMC X10 with Missing Link |
Brakes | Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
Brake Levers | Shimano GRX RX-400 hydraulic |
Handlebars | Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
Tape/Grips | cork tape with gel |
Stem | Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
Seatpost | Giant D-Fuse, alloy, 14mm offset |
Saddle | Giant Approach |
Pedals | Sold Separately |
Accessories & Extras | tubeless prepared, 53mm max tire size in "long" flip chip position, 42mm max tire size in "short" flip chip position |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Grenadine / X-Large | 04712878763265 | 2202004128 | 210000015203 |
